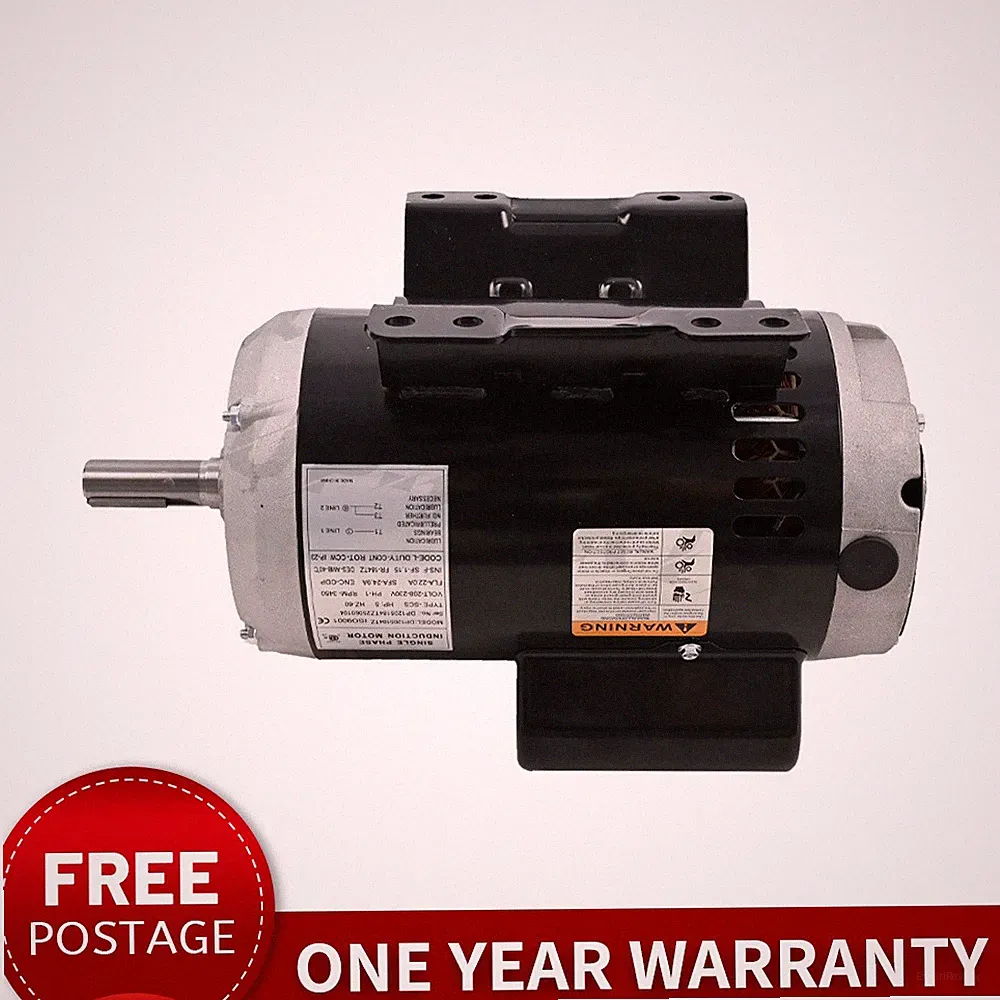

New Air Compressor Motor 23378805 54421193 Fits Ingersoll Rand 230V 3450 Rpm 5HP
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
This new 5HP single-phase air compressor motor is designed for Ingersoll Rand equipment, operating at 230V and 3450 RPM. It features a 7/8" x 2 1/4" shaft with a keyway, within a 184T frame. The motor has a Drip-Proof (DP) enclosure, a 1.15 Service Factor, and a 60 Hz AC frequency rating with a 24.9 FLA. It is identified by multiple manufacturer part numbers and comes with a 1-year manufacturer warranty.
Our take
As a replacement motor for Ingersoll Rand air compressors, this 5HP unit provides the expected specifications: 230V single-phase power and a brisk 3450 RPM. The 7/8" shaft and 184T frame are standard dimensions that should ensure compatibility with many existing compressor setups. The 1.15 service factor is a good sign for handling varied workloads. However, like many motors in this category, it features a drip-proof enclosure, meaning it's not fully protected from all environmental elements. The 1-year warranty is adequate, but not exceptional for a component of this importance.
Pros & Cons
Pros
- 5HP motor for strong output
- 3450 RPM high-speed operation
- 230V single-phase power
- 7/8'' shaft with keyway
- 1.15 Service Factor
Cons
- 1-year manufacturer warranty is standard
- Drip-proof enclosure limits placement
Specifications
- Shaft Size 7/8" x 2 1/4" with Keyway
- Frame 184T
- Shaft height 4.5" (Measured to Shaft Center)
- FLA 24.9
- Frame Size 184T
- Part Number 2 CC1021885 23378805 23220064 56283138
Show all 18 specifications
- Manufacturer Warranty
- 1 Year
- Manufacturer Part Number
- 56283138, 23378805, 23220064, 54421193
- Brand
- autoup
- Rated Load (HP)
- 5
- AC Phase
- Single Phase
- Nominal Rated Input Voltage
- 230 V
- Service Factor
- 1.15
- Shaft Diameter
- 7/8''
- AC Frequency Rating
- 60 Hz
- Enclosure Type
- DP (Drip-Proof)
- Actual Rated Input Voltage
- 230V
- Base RPM
- 3450
